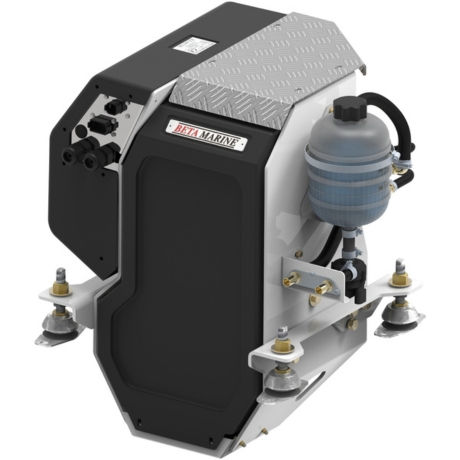

Beta 14 E-Drive Electric Propulsion Motor

The BETA 14 E-Drive electric propulsion motor has a robust, rugged, compact, and
unitary design. The 48v DC electric motor delivers 25kW intermittent and
14kW continuous power and is fully integrated with its controller.

It has highly efficient cooling via a water jacket, an integrated header tank and
water pump which delivers self-bleeding, easy filling and simple keel-cooled skin
tank or external hull-mounted heat exchanger pod connectivity.

The built-in 48v DC electric motor controller has self-protection for overpower,
under voltage and overspeed.

The Beta 14 E-Drive features a reduction drive to employ a large efficient propeller
and allow it to run at its optimized speed, delivering excellent acceleration and
stopping capabilities. The Beta 14 E-Drive also has ‘plug & play’ connectivity for
its control panel, joystick and power supply.

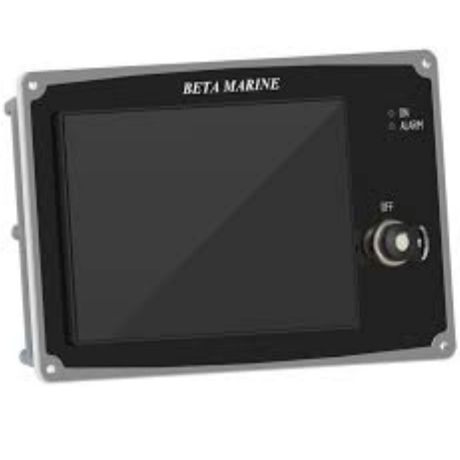

The LCD 5” touch screen control panel is configured to show speed, current, voltage,
and battery bank charge left available. Data logging for motor, controller and battery
management system (if installed) can be downloaded to a USB stick for remote diagnostics.

Additionally it has a limp home mode when on a low battery bank which can be overridden by an engineers setting.

Heavy duty E-Drive feet with flexible mountings are included. Note: The Beta 14 E-Drive
flexible mount footprint width matches that of a Beta 38 engine.

Highlighted Features

– Eco Friendly
– Efficient
– Quiet
– Space Saving
– Weight Saving
